In-wall HDBaseT receiver plate with 4K HDMI output
The HEX11WPW-RX is an HDBaseT receiver built as a wall plate, accepting HDMI signals up to 70 m at 1080p and up to 40 m in 4K.
It fits UK and European back boxes thanks to its magnetic front surround, leaving only the HDMI socket and service connections on the wall. It works with every Blustream HDBaseT transmitter and matrix, from which it can take PoC power between 12 and 48 V; otherwise it runs on the supplied local adapter. CEC, RS-232 and two-way IR travel along with the video. In 4K it handles 3840 x 2160 at 30 Hz and 4096 x 2160 at 24 Hz in 4:4:4, or 4K at 60 Hz with 4:2:0 chroma. Actual functions depend on the connected HDBaseT device.
Key features
- Wall plate format with magnetic surround, for UK and EU back boxes
- 1080p up to 70 m, 4K up to 40 m
- Multichannel bitstream audio, object-based formats included
- CEC, RS-232 and two-way IR pass-through
- PoC from 12 to 48 V from Blustream transmitters and matrices
- HDCP 2.2
Installation

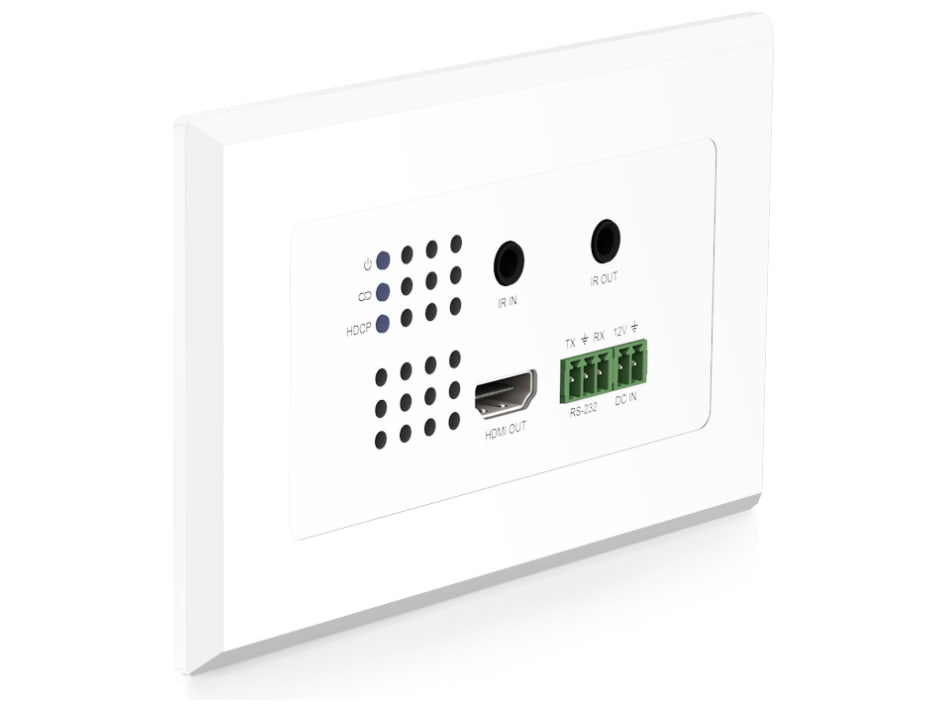

The body measures 136 x 76 x 44 mm without the surround; the surround is 146 x 86 x 6 mm. The back box, not included, must be at least 40 mm deep. Connections: HDBaseT input on RJ45, HDMI type A output, 3-pole Phoenix for RS-232, 3.5 mm minijacks for IR, 2-pole Phoenix for local 12 V 1 A power.
Box contents
Receiver, 12 V 1 A power supply, magnetic surround and quick guide.
