4K HDBaseT receiver up to 100 m with colour space conversion

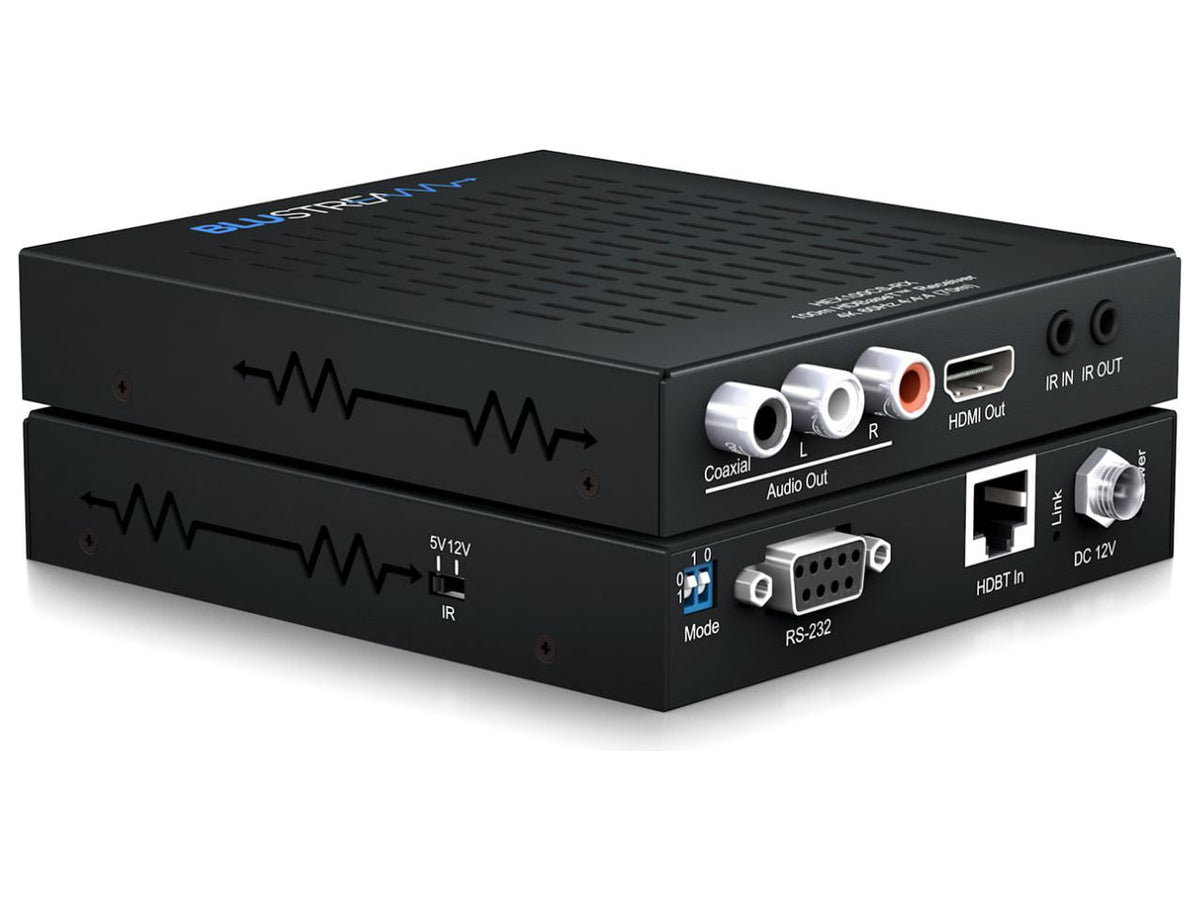

The Blustream HEX100CS-RX is an HDBaseT receiver that takes HDMI 2.0 video, IR and RS-232 commands over a single network cable, up to 100 m at 1080p and up to 70 m in 4K 60Hz in 4:4:4.
It pairs with compatible HDBaseT transmitters and matrices, for example the output boards of the Custom Pro matrix, and is powered through the cable (PoC) or by a local 12 V 2 A supply, not included. CSC technology handles 18Gbps signals with HDR and HDCP 2.2. The receiver regenerates the HDMI signal before handing it to the screen, which helps clear HDCP and device handshake problems. It extracts audio from HDMI and makes it available simultaneously on two analogue RCA and one coaxial digital output, to feed a zone amplifier or a sound system. The mounting kit is included.
Key features
- 4K 60Hz in 4:4:4 up to 70 m, 1080p up to 100 m
- 18Gbps HDMI 2.0 with HDR, HDCP 2.2
- Resolutions from VGA to WUXGA and from 480i to 4K
- HDMI signal regeneration
- Audio extracted on analogue L/R RCA and coaxial digital
- IR and RS-232 pass-through in both directions
- Bitstream of multichannel surround audio, object-based formats included
Technical data
Input: one HDBaseT RJ45 port. Outputs: one HDMI Type A, one coaxial S/PDIF RCA and two analogue RCA. Then a DB-9 serial connector, a 3.5 mm stereo jack for IR in and a mono jack for IR out. It draws 5.6 W, measures 113 x 124 x 22 mm without connectors and weighs 0.35 kg; it works between 0 and 40 °C.
