The excellence of the 800 Series in a compact Signature format

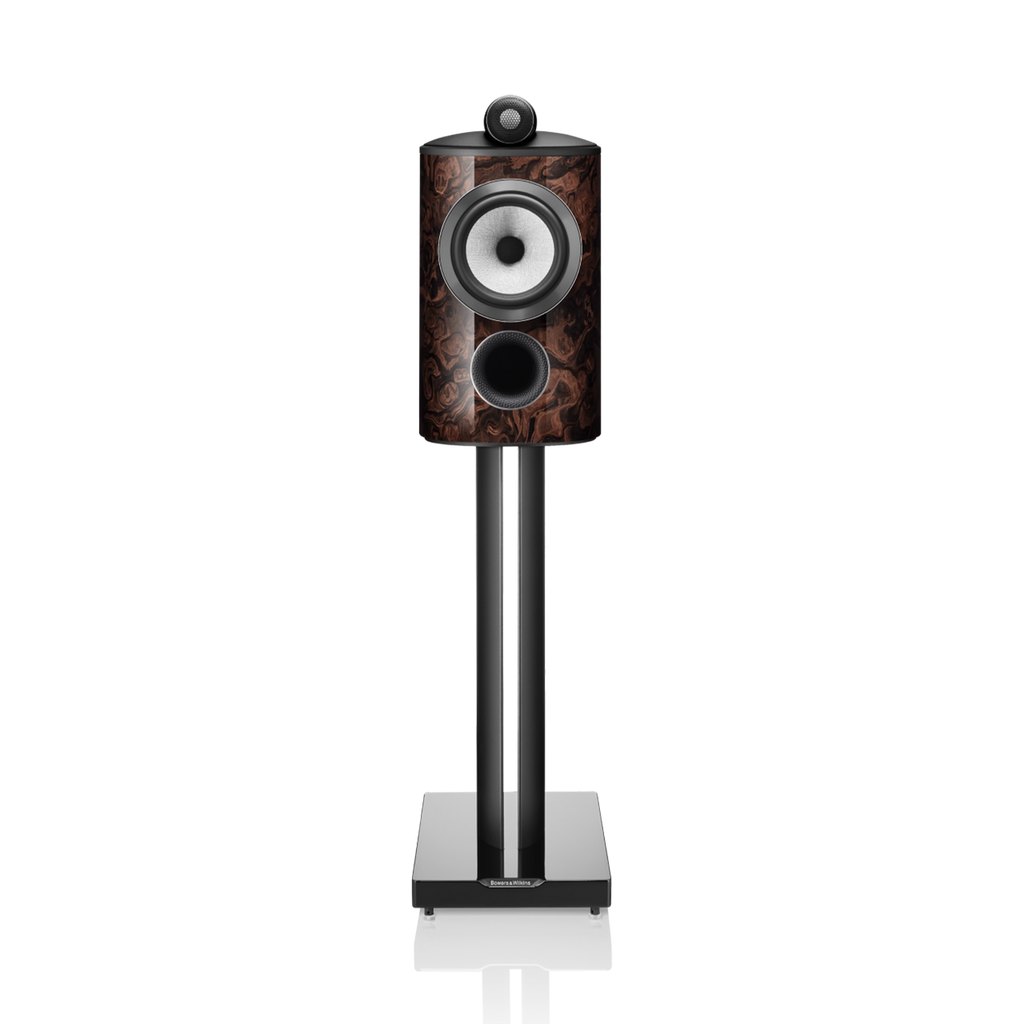

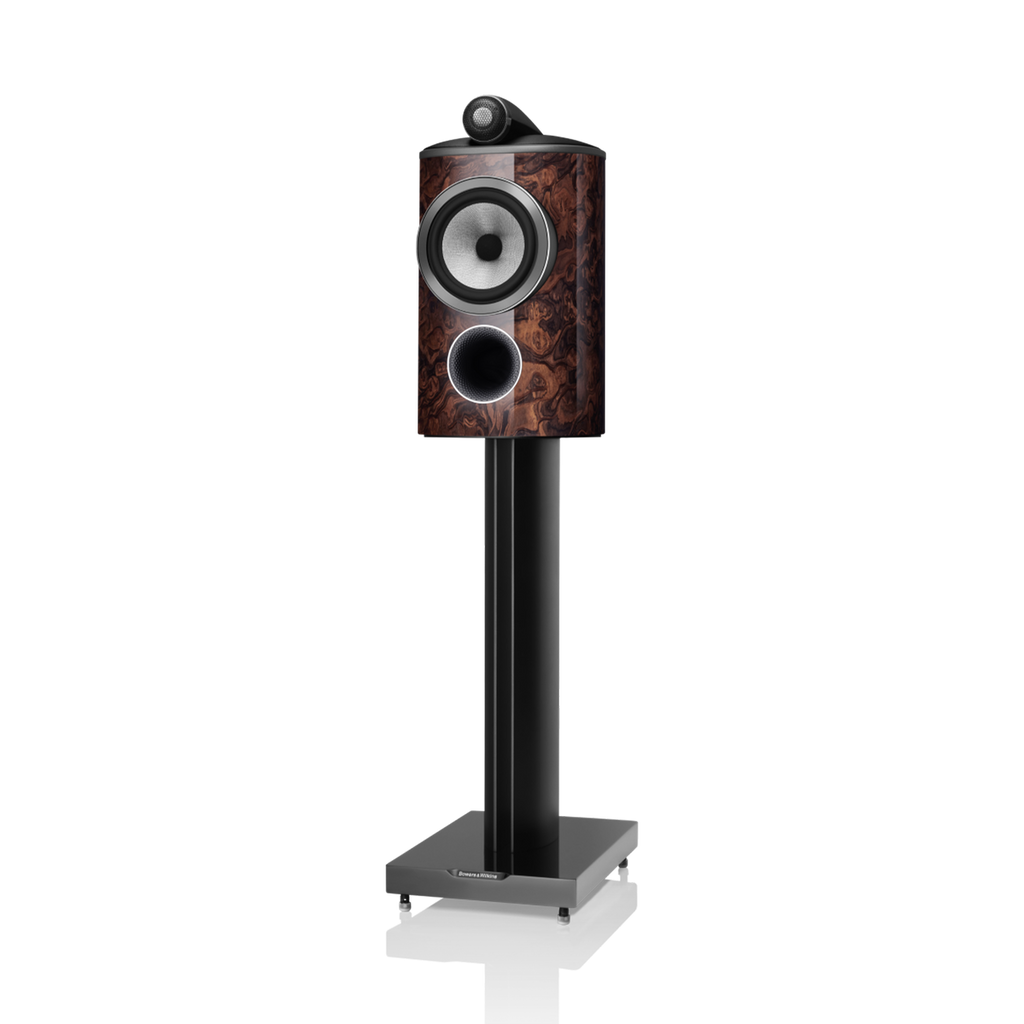

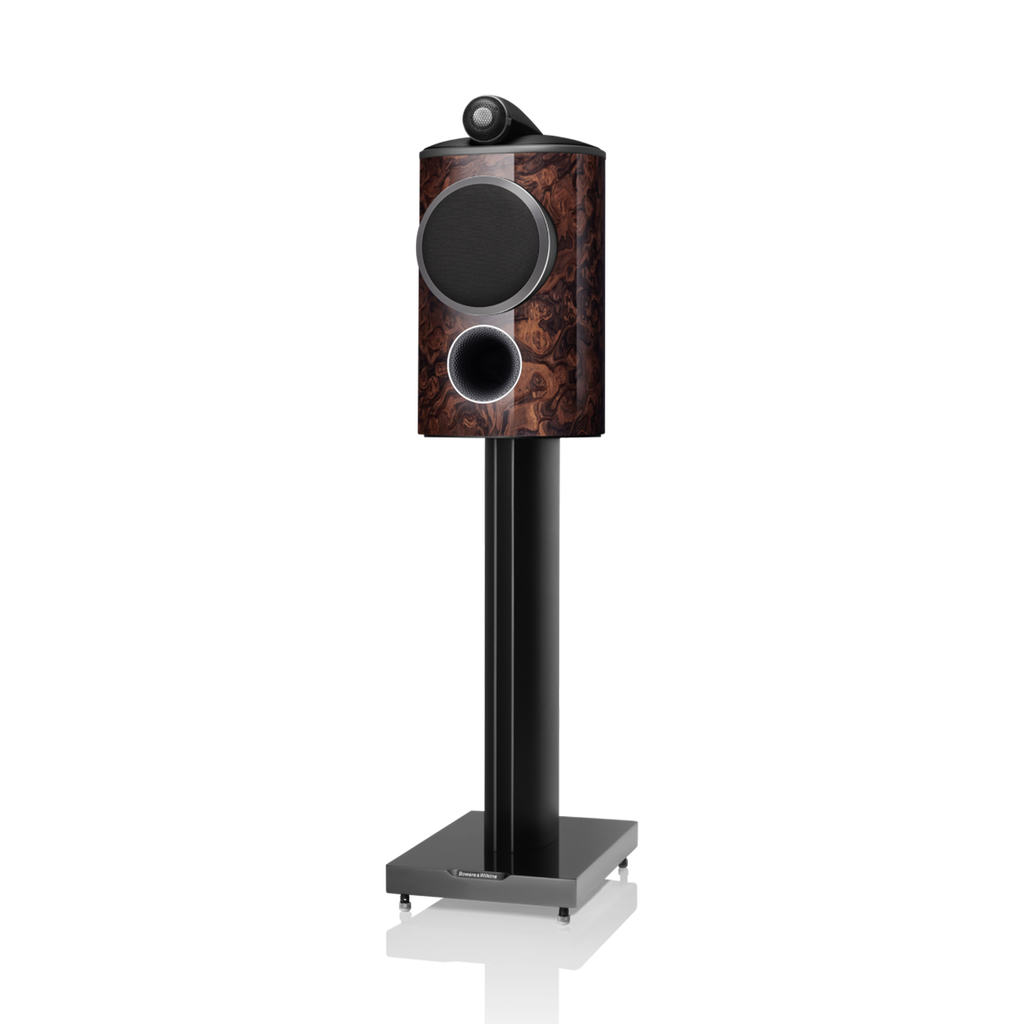

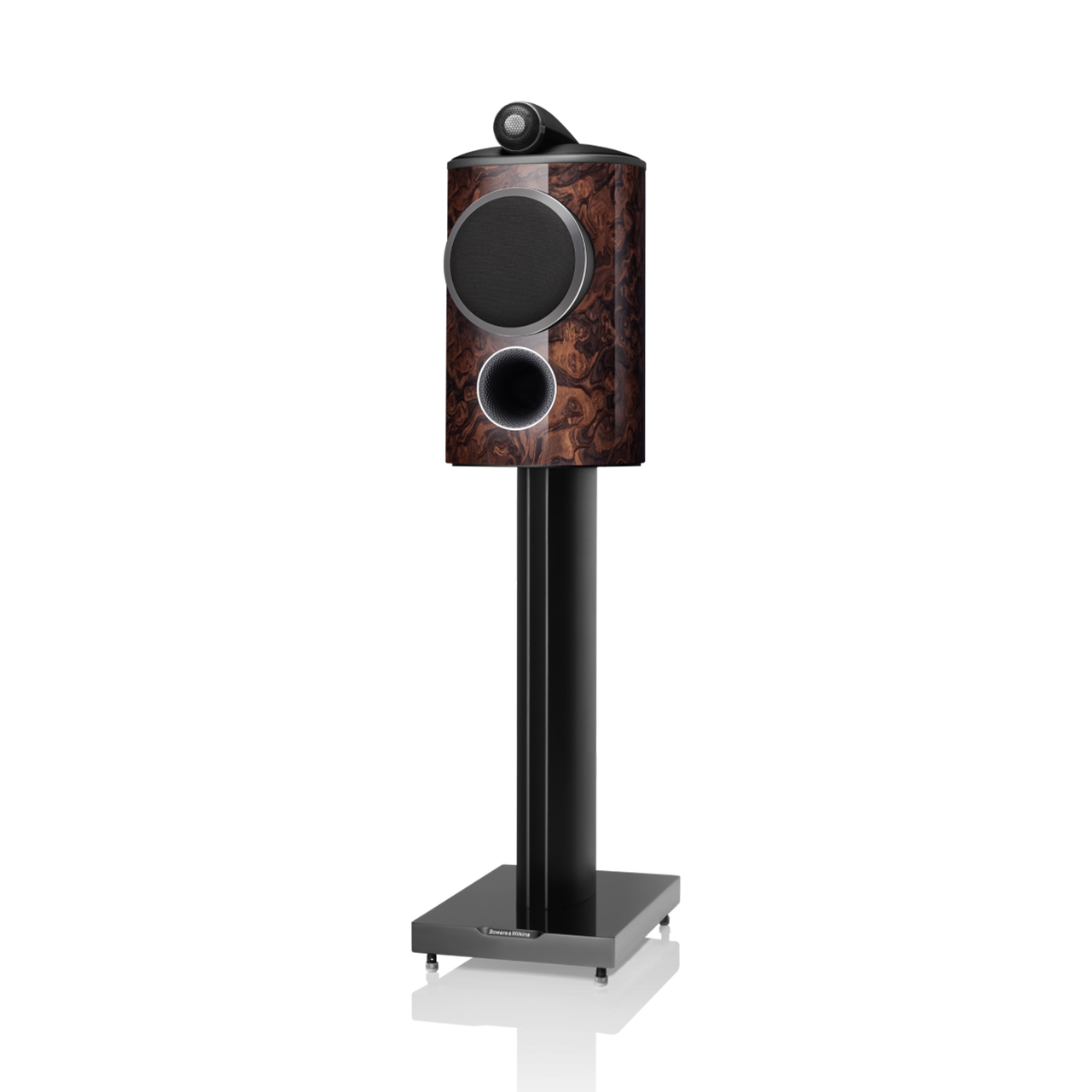

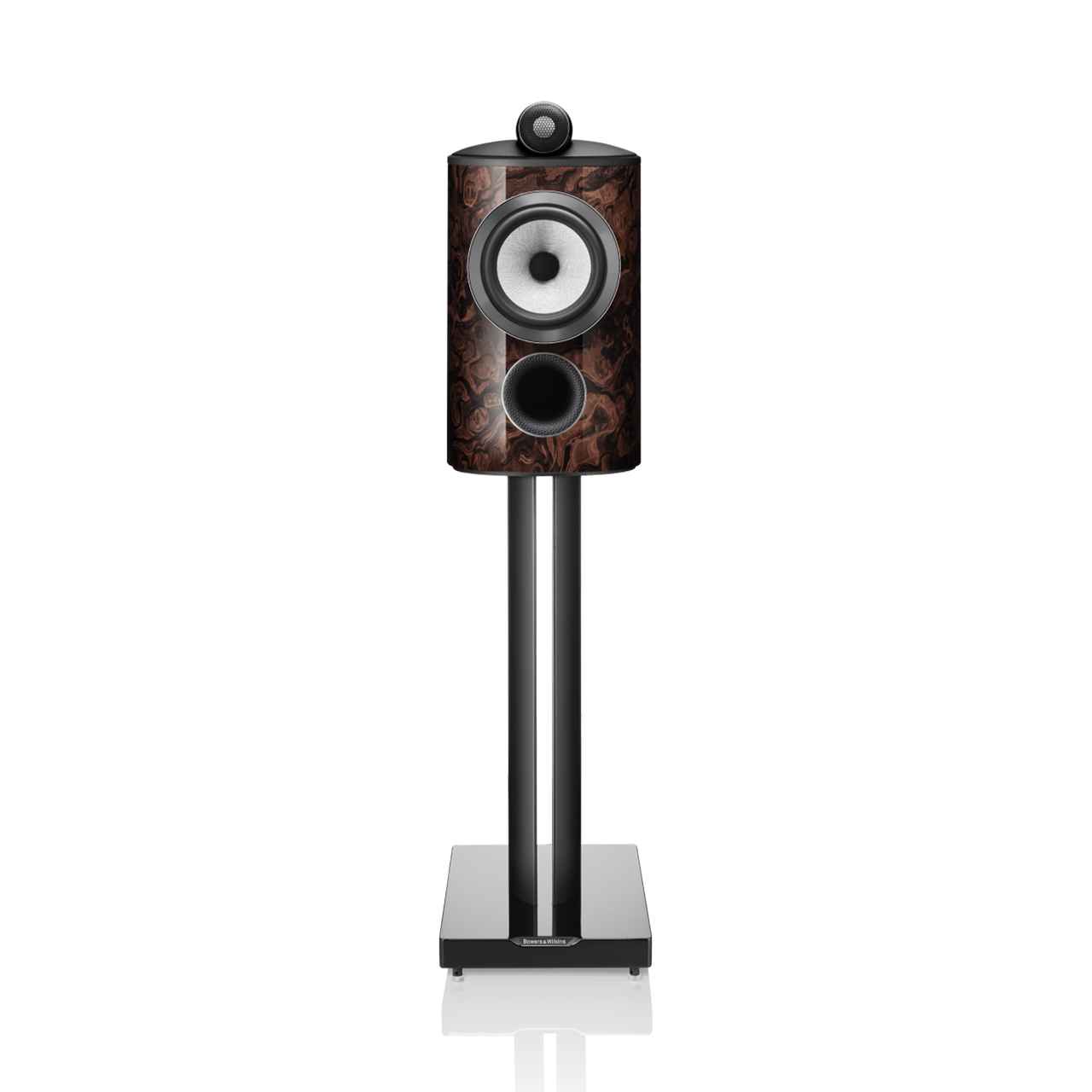

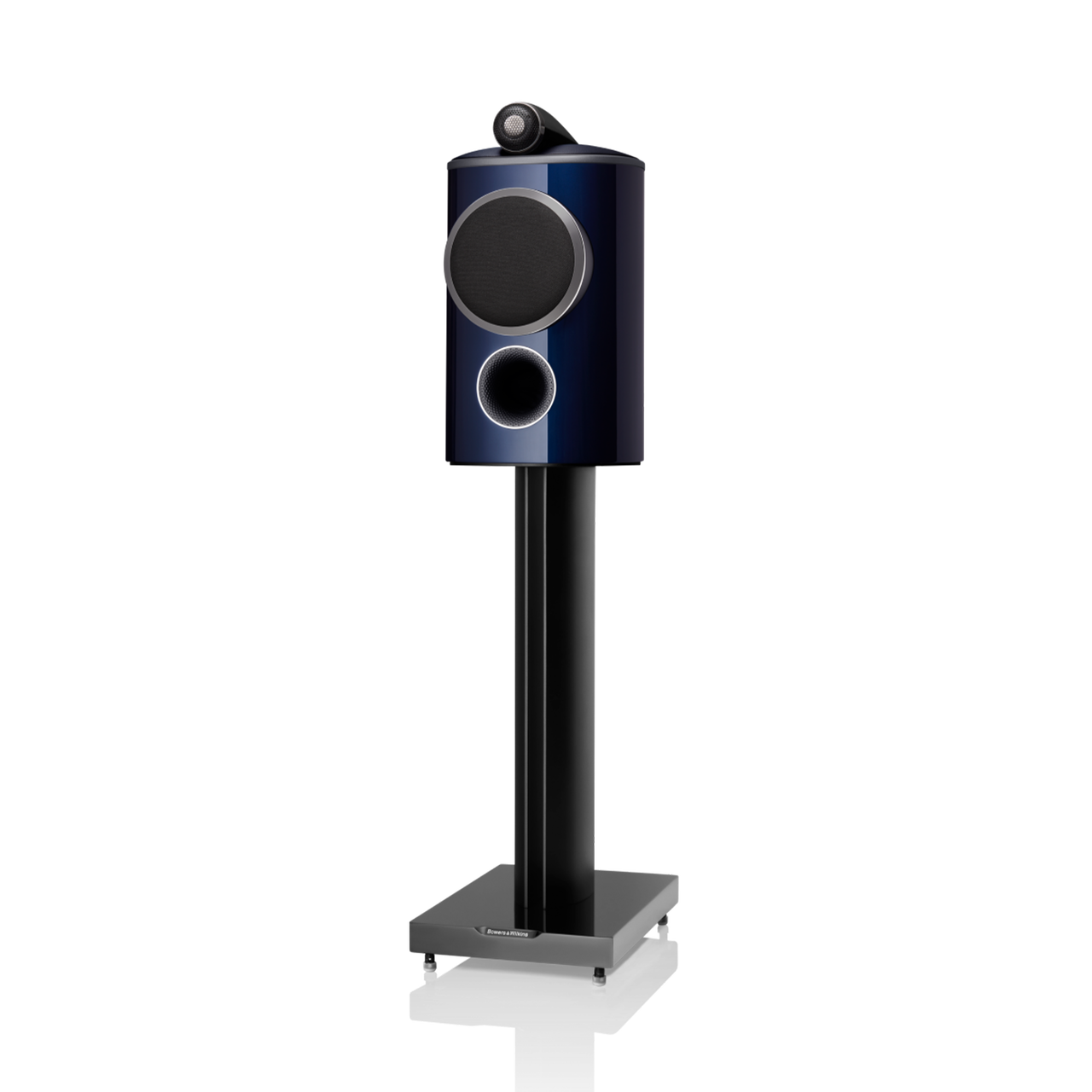

The Bowers & Wilkins 805 D4 Signature represents the most refined evolution of the renowned 800 Series Diamond standmount speaker. This Signature version is designed to offer a superior level of acoustic performance and handcrafted finish, with select components and targeted crossover optimizations.
The result is a bookshelf speaker capable of combining absolute transparency , extreme micro-detail and a reference three-dimensional soundstage, maintaining a compact format perfect for high-end domestic environments.
Designed for high-end hi-fi systems, the 805 D4 Signature is for those who want a purist listening experience, with a unique aesthetic that immediately sets it apart from the standard version.
Diamond technology and optimized Reverse Wrap cabinet
The 805 D4 Signature uses a 25mm Diamond Dome tweeter housed in the renowned solid aluminium tweeter-on-top , decoupled from the cabinet to reduce vibration and colouration. The mid/bass is handled by the renowned 165mm Continuum™ driver , mounted in a Reverse Wrap cabinet stiffened by an internal aluminium matrix.

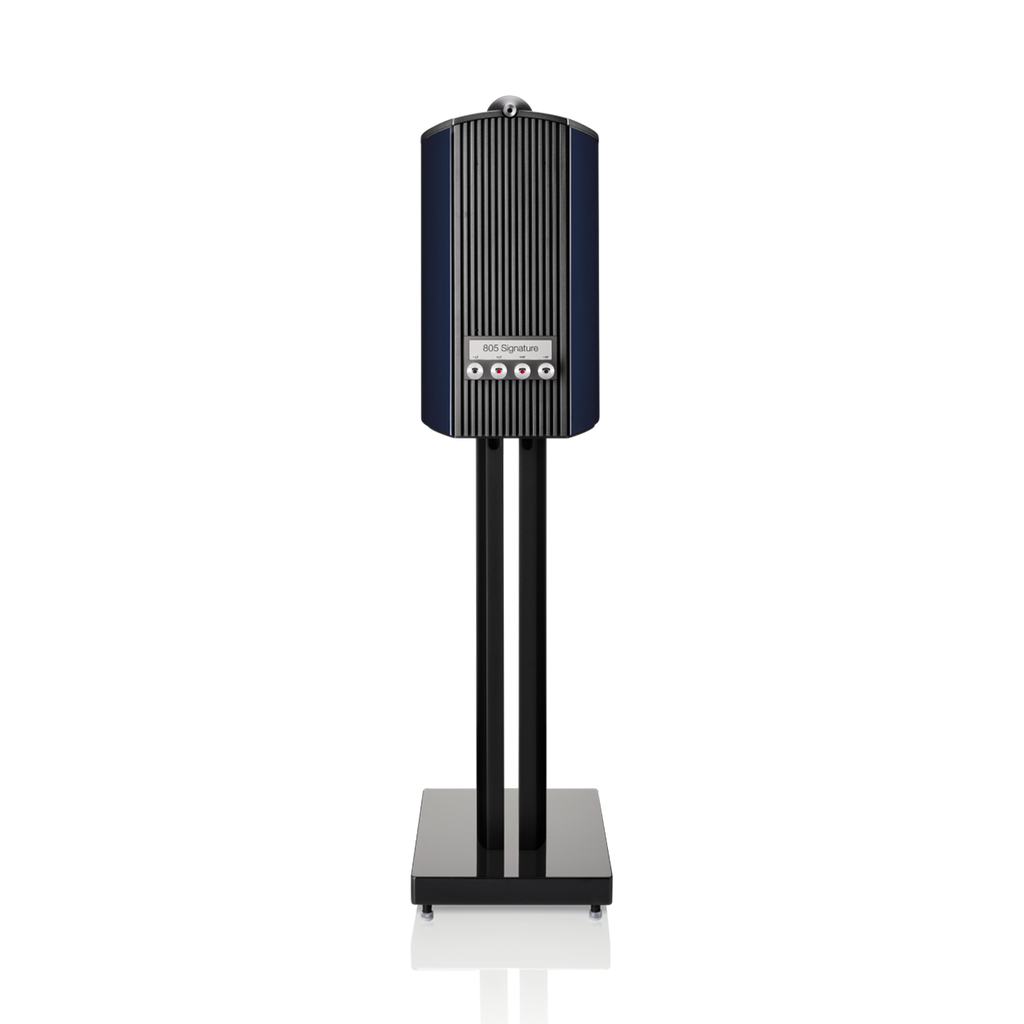

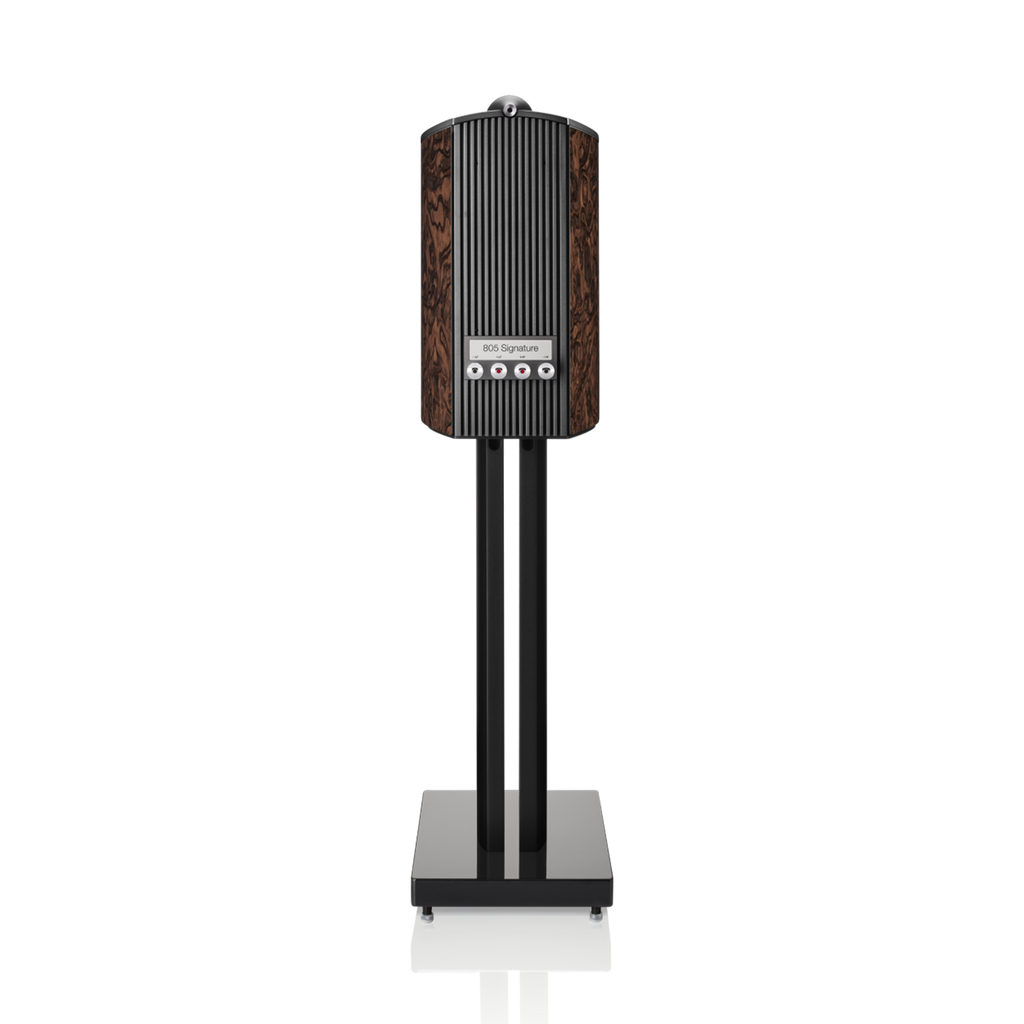

The crossover has been further optimized with selected components to ensure greater transparency and accuracy in the frequency response. The rear-firing reflex system with Flowport technology contributes to a controlled and articulated low range, maintaining tonal coherence and speed.
The result is a 2-way speaker that offers a neutral, dynamic and incredibly natural sound reproduction, ideal for high-level amplification.
| Type
|
2-way, bass-reflex stand-mount speaker |
| Tweeter
|
1 × 25 mm Diamond Dome with Solid Body Housing |
| Mid/Bass
|
1 × 165 mm Continuum™ cone |
| Frequency response
|
42 Hz – 28 kHz (±3 dB) |
| Frequency extension
|
34 Hz – 35 kHz (-6 dB) |
| Sensitivity
|
88 dB (2.83 V / 1 m) |
| Nominal impedance
|
8 Ω (minimum 4.6 Ω) |
| Recommended amplifier power
|
50 – 120 W into 8 Ω |
| Dimensions (H × W × D)
|
440 × 240 × 373 mm |
| Weight
|
15.55 kg |
| Finishes
|

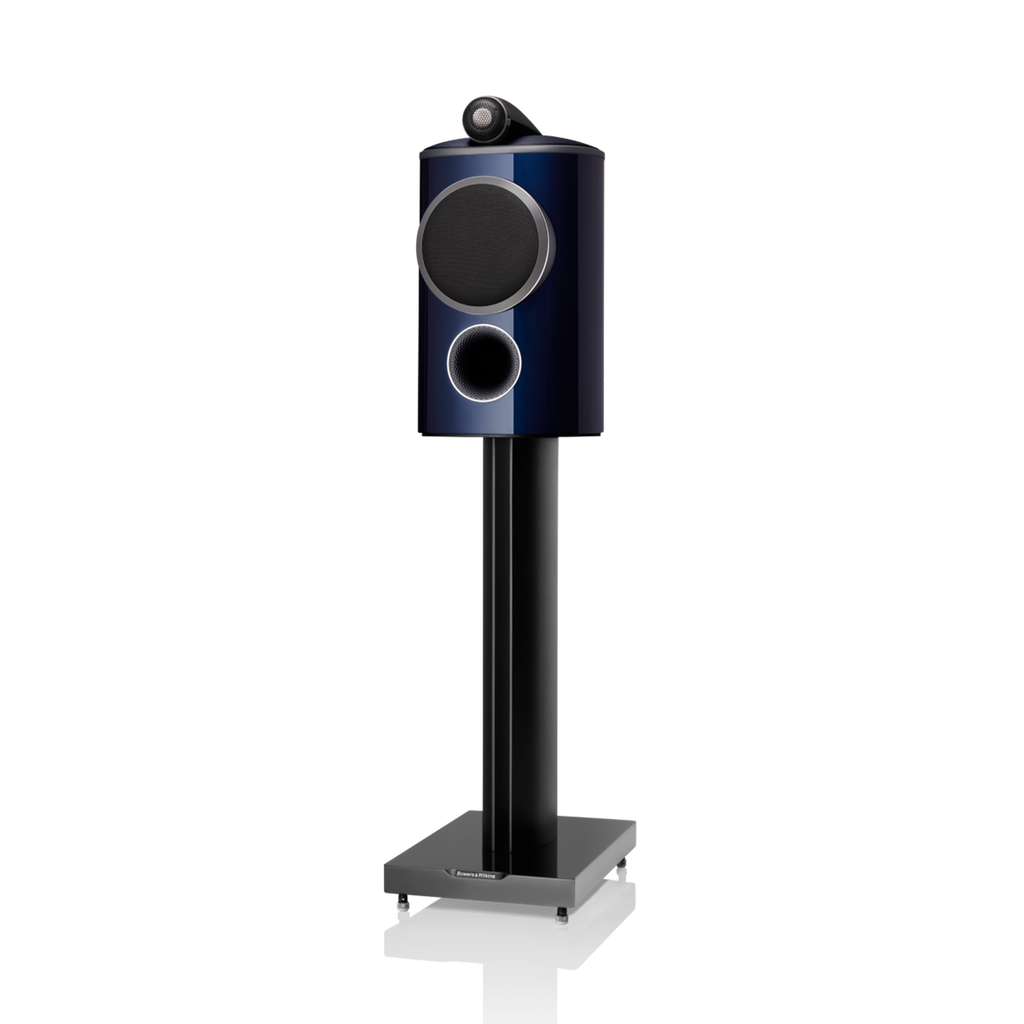

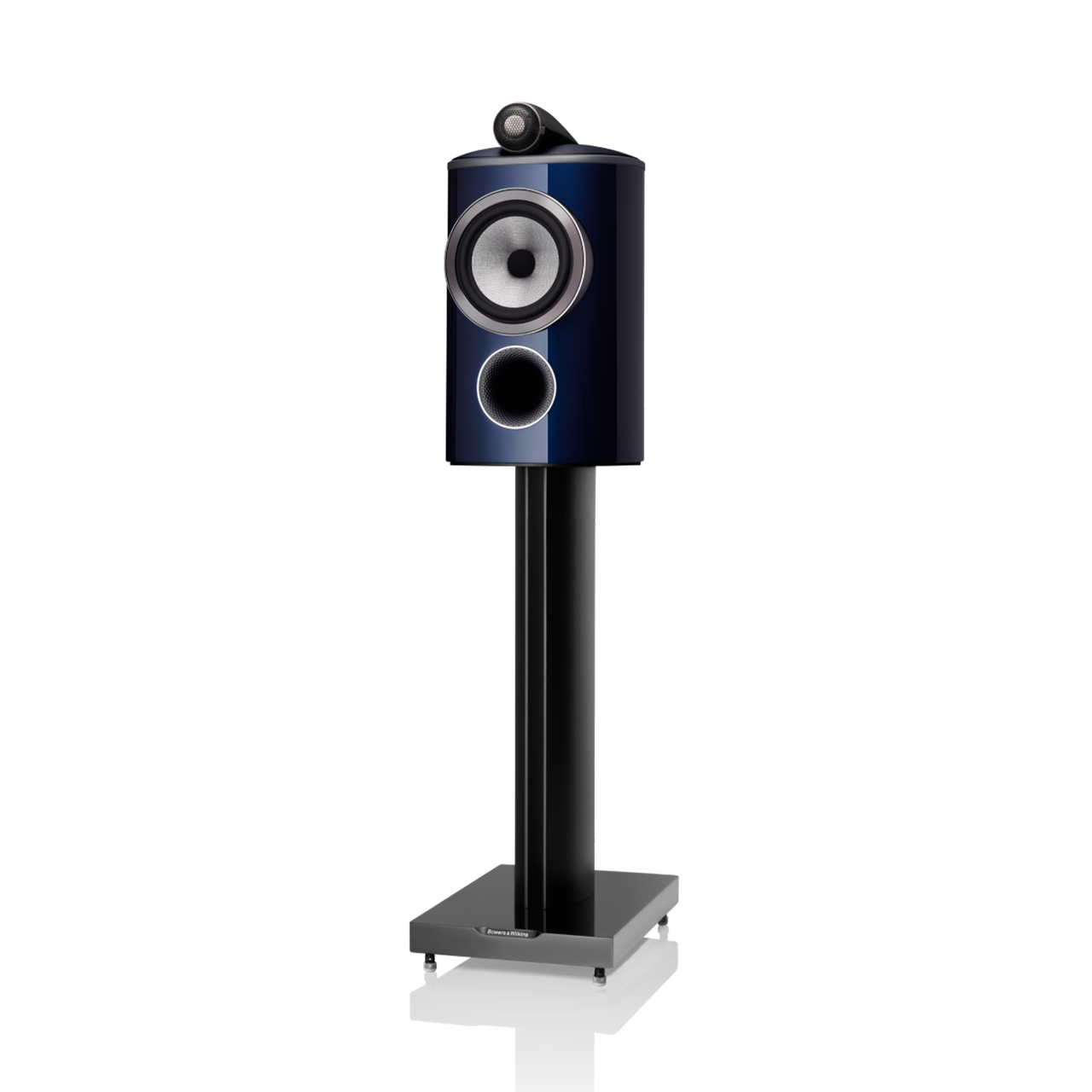

Midnight Blue Metallic, California Burl Gloss |
