AVM PC 3.3 Power Conditioner: mains filter with OLED display and separate outputs for sources and power amplifiers
The PC 3.3 is a mains filter intended for audio and video systems: it is designed to remove from the supply the high-frequency and low-frequency disturbances present on the electrical line, so as to deliver clean current to the sensitive equipment connected to it. A graphical OLED display keeps the quality of the current under continuous watch and shows it to the user.

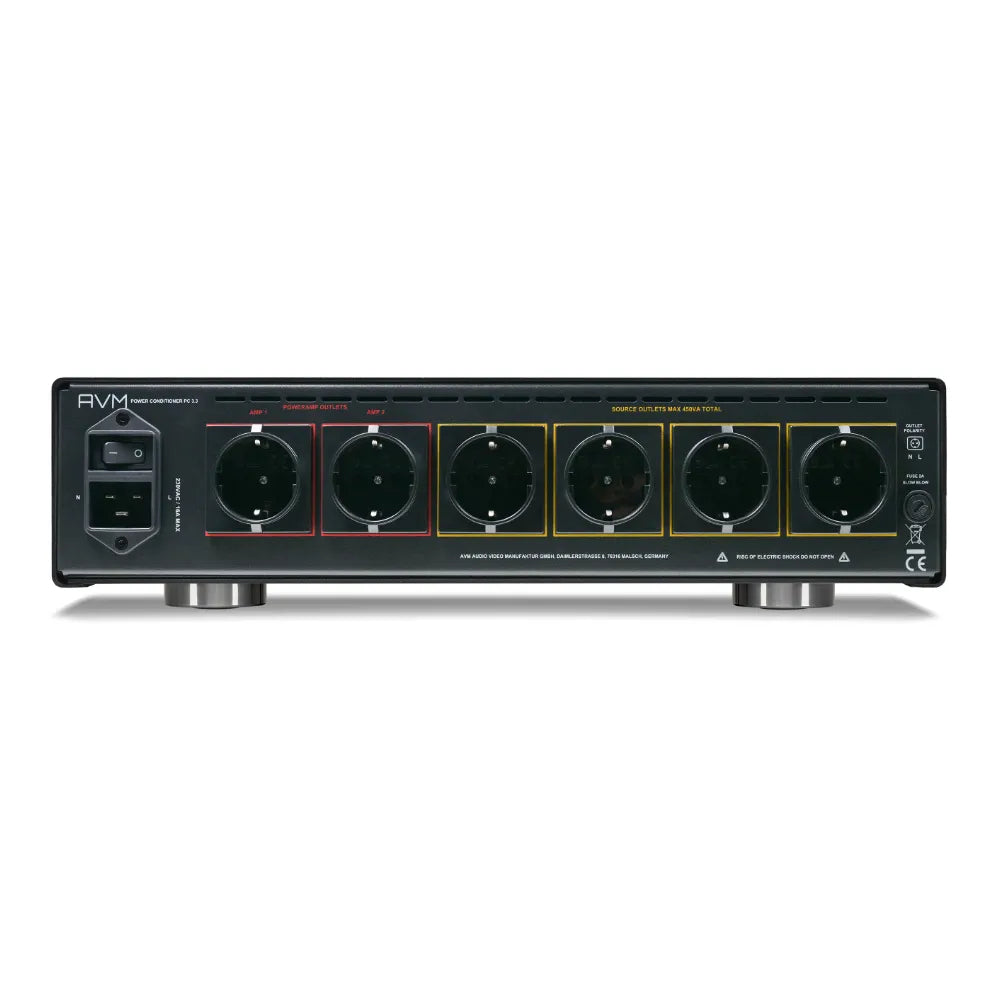

The outputs are divided into two groups. Those labelled Source Out, for sources, deliver up to 2 A in total; those labelled Poweramp Out, for power amplifiers, reach 16 A overall. The combined current of the two groups is in any case limited to 16 A. A 2 A slow-blow fuse is located on the rear panel. The safety functions include active phase detection and protection against voltage surges, which safeguard the connected equipment.
Technical features
- Function: filtering of high-frequency and low-frequency mains disturbances

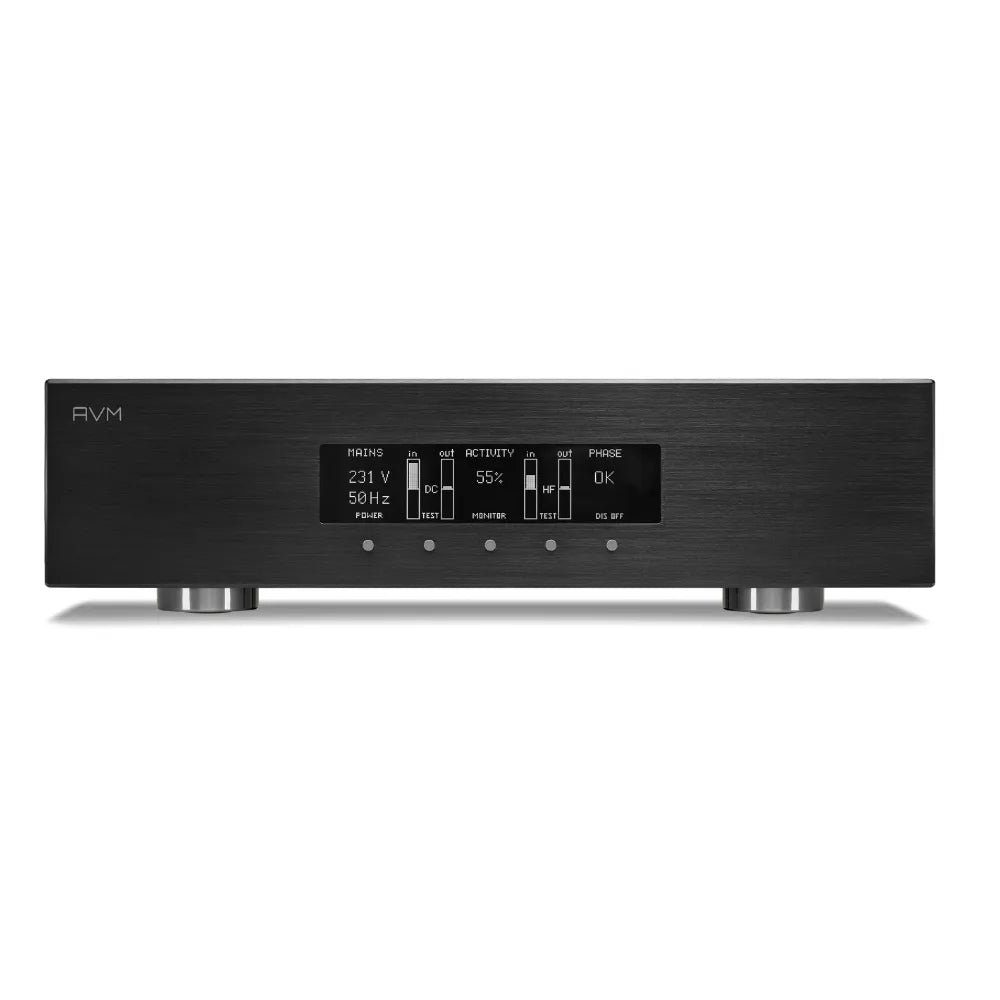

- Graphical OLED display with continuous monitoring of current quality
- Protections: voltage surges and active phase detection
- Source Out outputs: maximum current 2 A, as the sum of the outputs in the group
- Poweramp Out outputs: maximum current 16 A, as the sum of the outputs in the group
- Overall current limit, Source Out plus Poweramp Out: 16 A
- Rear-panel fuse: slow-blow type, 2 A T
- Dimensions: width 430 mm, height 115 mm, depth 390 mm
Available versions
Sold as a single unit.
