ATC SCM40: three-way floorstanding loudspeakers with a 164 mm woofer

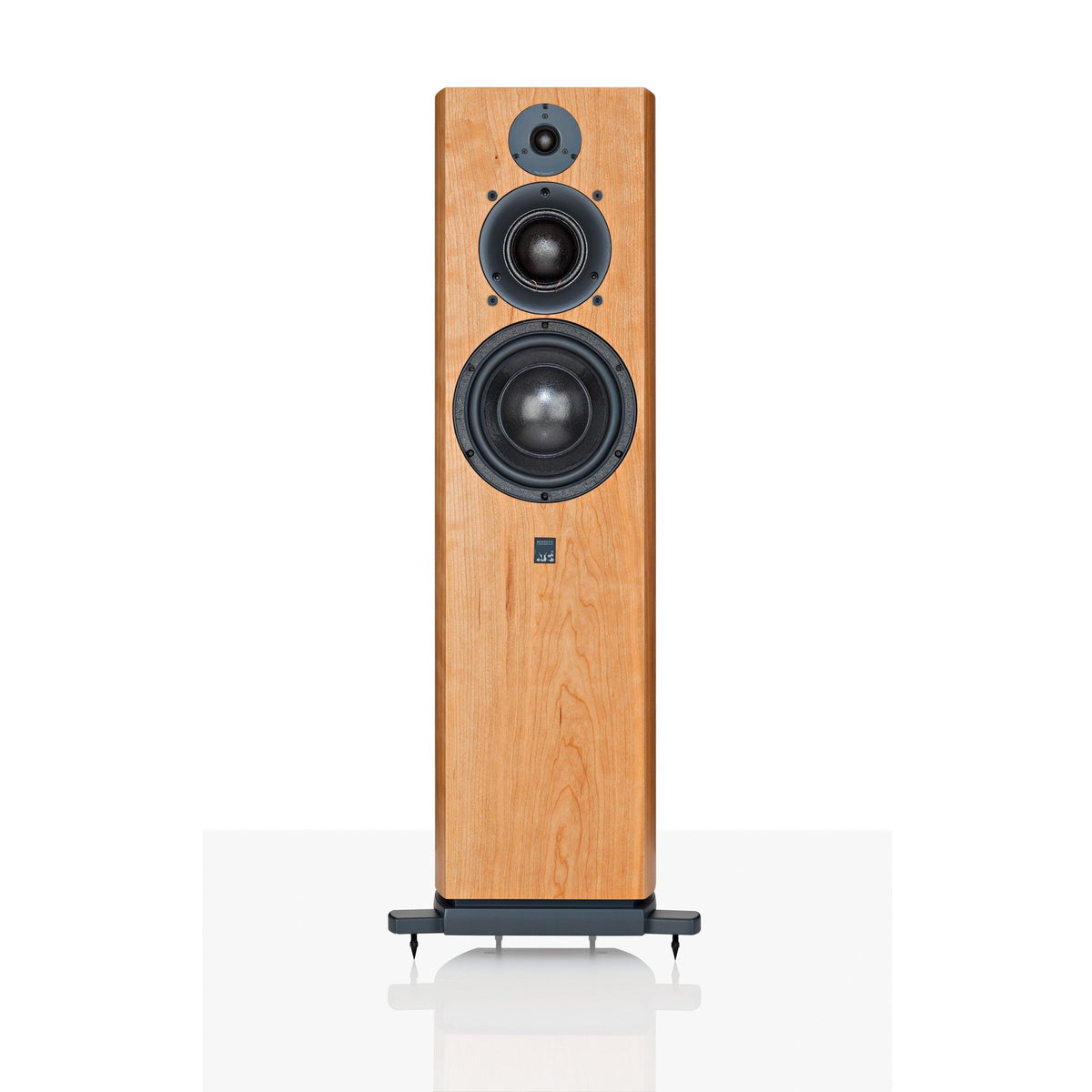

ATC SCM40 is a three-way floorstanding loudspeaker from the Entry Series, with drive units designed and built by ATC. The tweeter is a 25 mm soft dome with a neodymium magnet and a precision alloy waveguide; the midrange is entrusted to a 75 mm ATC soft dome unit and the low frequencies to a 164 mm woofer with a large motor assembly.

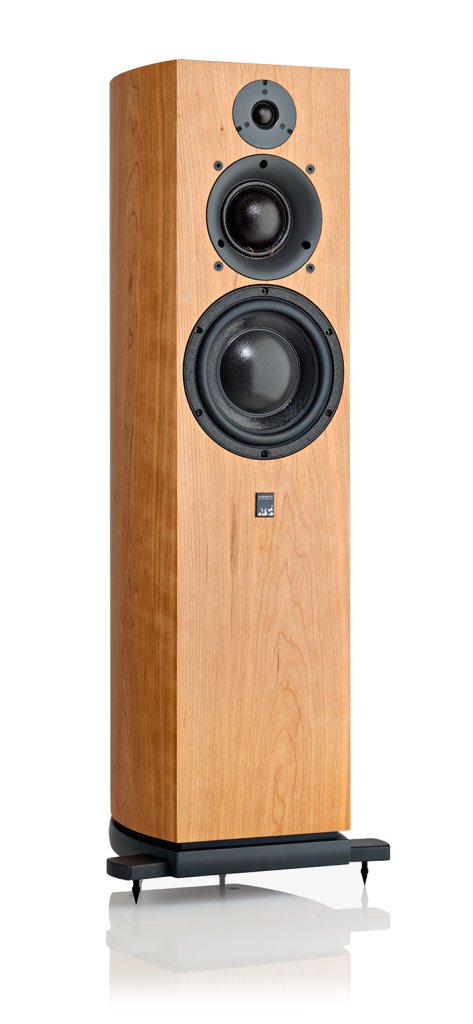

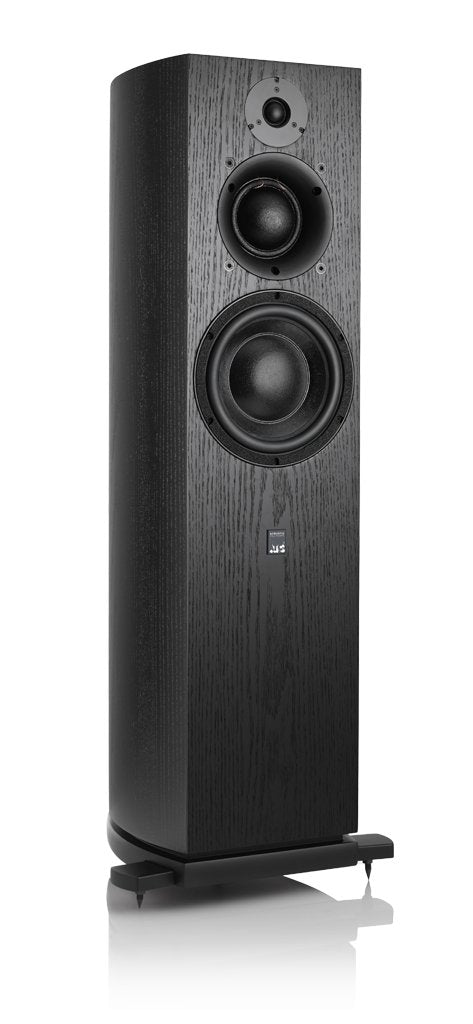

The flat impedance curve makes the loudspeaker an easy load for the amplifier. The terminals also take 4 mm plugs and are arranged for a tri-wire connection. The cabinet stands on a plinth with four M8 threaded spikes. The loudspeakers are sold as a pair, with a veneered finish in Black Ash or Cherry.
Technical features
- Drive units: ATC 25 mm neodymium tweeter, ATC 75 mm soft dome midrange, ATC SC 164 mm woofer
- Frequency response: from 48 Hz to 22 kHz (-6 dB); response of the two speakers matched within +/- 0.5 dB
- Sensitivity: 85 dB (1 W, 1 m); maximum sound pressure 112 dB
- Nominal impedance: 8 Ohm
- Recommended amplifier: from 75 to 300 W
- Crossover frequencies: 380 Hz and 3.5 kHz
- Dispersion: coherent within +/- 80 degrees horizontally and +/- 10 degrees vertically
- Size per speaker: height 980 mm, width 370 mm, depth 305 mm, plinth included; the spikes add 25 mm in height, the grille 34 mm in depth
- Weight: 31 kg per speaker
