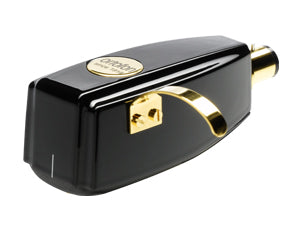

Fonorivelatore MC con Shell EIA integrato - Stilo Ortofon replicant 100 - Avvolgimenti in electrum (lega oro/argento) -Tensione d'uscita 0,2 mV;
Output voltage at 1000 Hz, 5cm/sec.: 200 µV
Channel balance at 1 kHz: < 1 d
Channel separation at 1 kHz: > 25 dB
Channel separation at 15 kHz: > 20 dB
Frequency range at - 3dB: 20-60.000 Hz
Frequency response: 20-20.000 Hz + 1,5 / - 0 dB
FIM distortion at recommended tracking force, DIN 45.542: < 1%
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 8 µm/mN
Stylus type: Nude Ortofon Replicant 100
Stylus tip radius: r/R 5/100 µm
Equivalent stylus tip mass: 0,45 mg
Tracking force range: 2,5-3,5 g (25-35 mN)
Tracking force, recommended: 3,0 g (30 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 6 Ohm
Recommended load impedance: > 100 Ohm
Cartridge body material: Aluminium
Cartridge colour: Nickel/Black
Cartridge weight: 28,5 g
