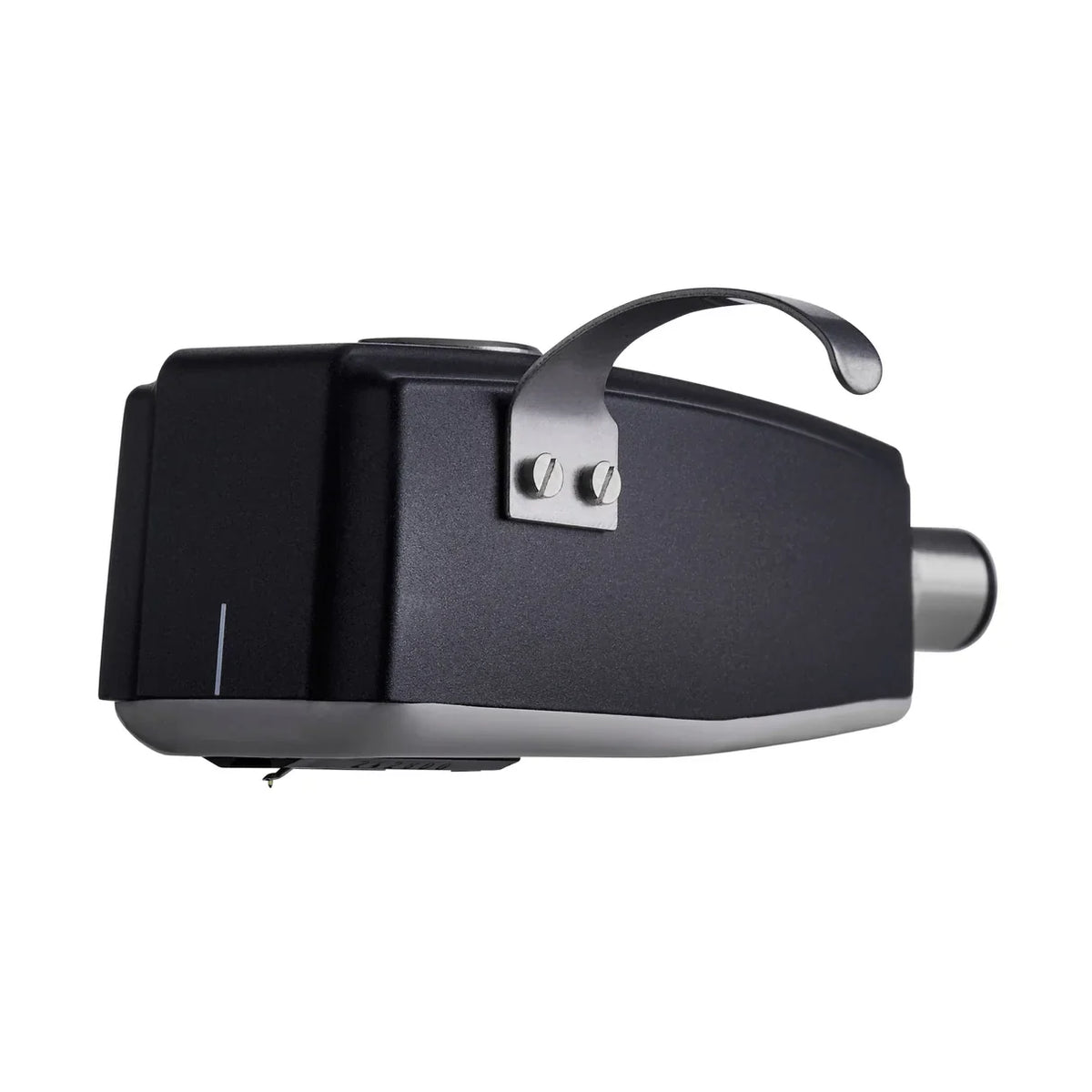

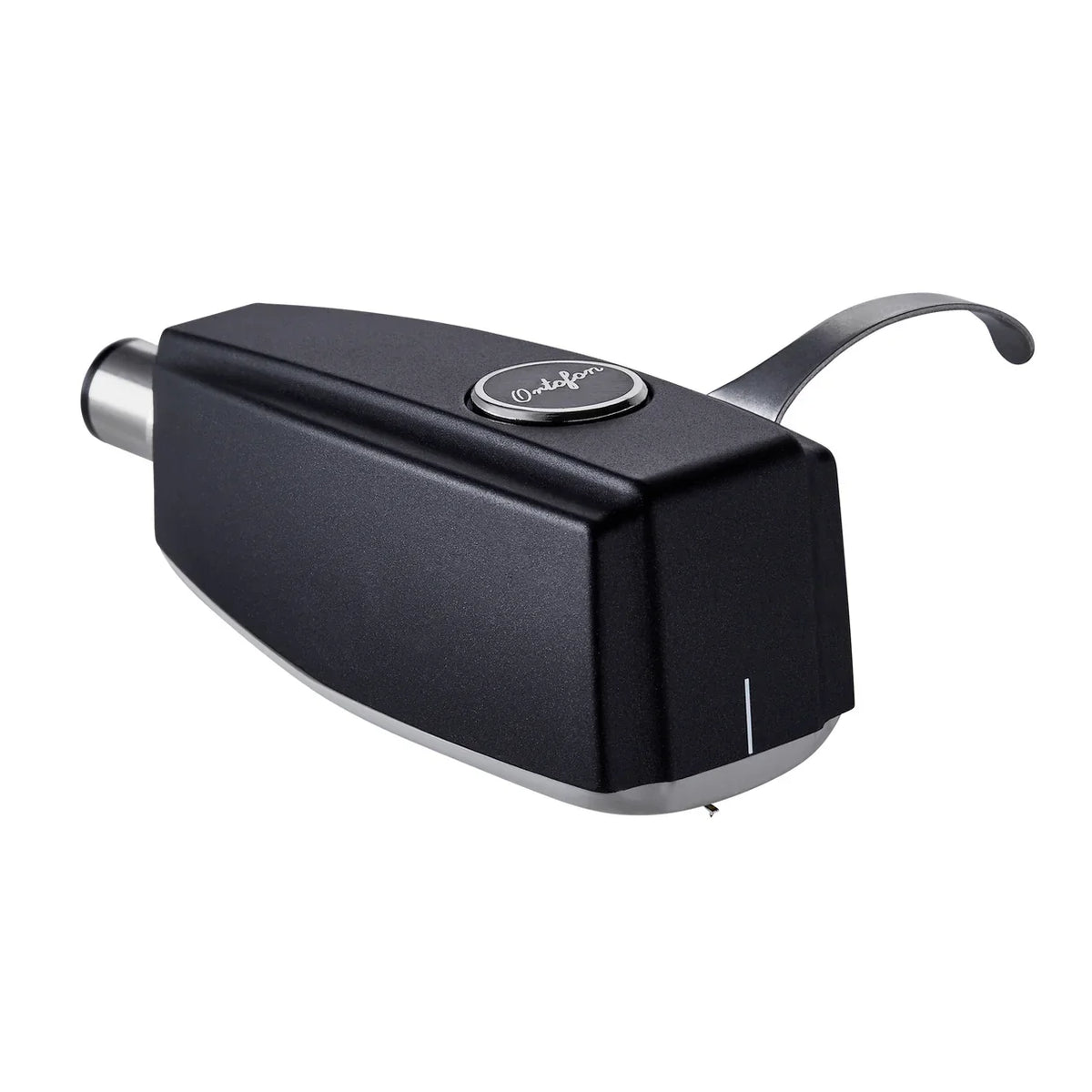

Fonorivelatore MC con shell EIA Integarto. Stilo ellittico. Tensione d'uscita 0,2 mV
--
Fonorivelatore MC con shell EIA Integarto. Stilo ellittico. Tensione d'uscita 0,2 mV;
Output voltage at 1000 Hz, 5cm/sec.: 200 µV
Channel balance at 1 kHz: < 1 dB
Channel separation at 1 kHz: > 20 dB
Channel separation at 15 kHz: > 10 dB
Frequency range at - 3dB: 20-25.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 2 dB
FIM distortion at recommended tracking force, DIN 45.542: < 1%
Tracking ability at 315Hz at recommended tracking force: 65 µm
Compliance, dynamic, lateral: 8 µm/mN
Stylus type: Nude elliptical
Stylus tip radius: r/R 8/18 µm
Equivalent stylus tip mass: 1,0 mg
Tracking force range: 3,0-5,0 g (30-50 mN)
Tracking force, recommended: 4,0 g (40 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 2 Ohm
Recommended load impedance: > 10 Ohm
Cartridge body material: Aluminium
Cartridge colour: Nickel/Black
Cartridge weight: 28,5 g
