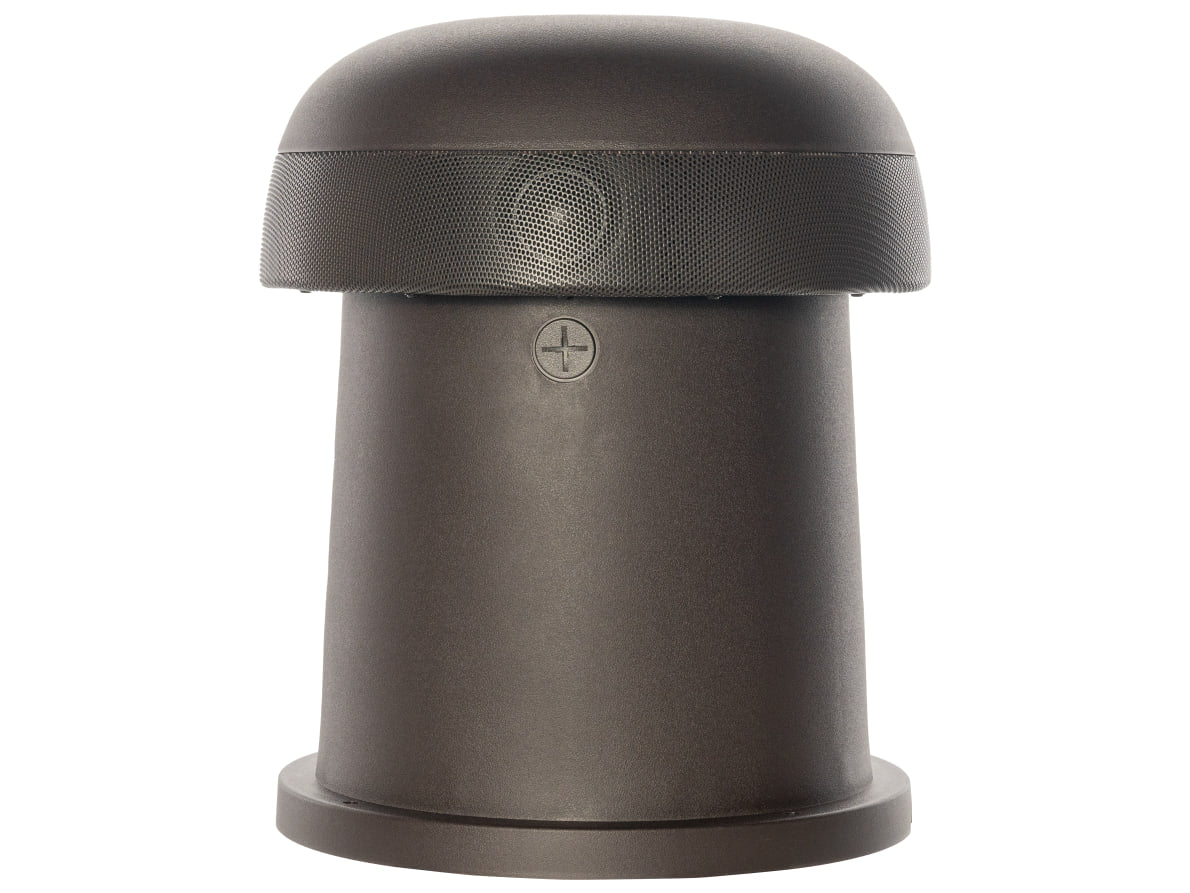

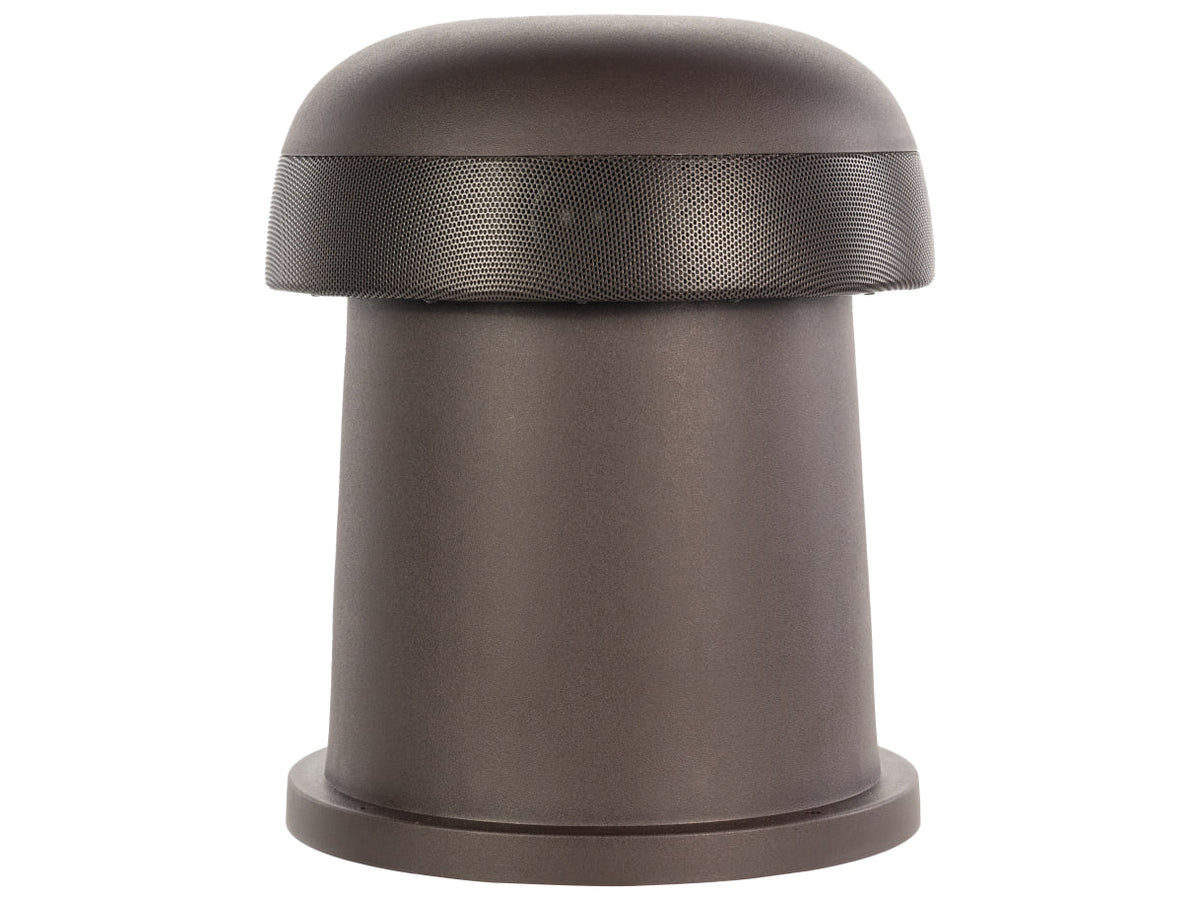

OMNI-6T
The Sonance OMNI-6T is an Omnidirectional 70V/100V/8 Ohm loudspeaker, designed to deliver 360-degree coverage in applications such as resort gardens, hotel pool areas, theme parks and outdoor shopping malls.
The OMNI-6T features a unique 2-way design, consisting of one high-excursion 6.5" woofer and four 1.25" wide band drivers, providing best-in-class frequency response.
The Sonance Laminated Core Transformer delivers un-compromised fidelity in 70V/100V.

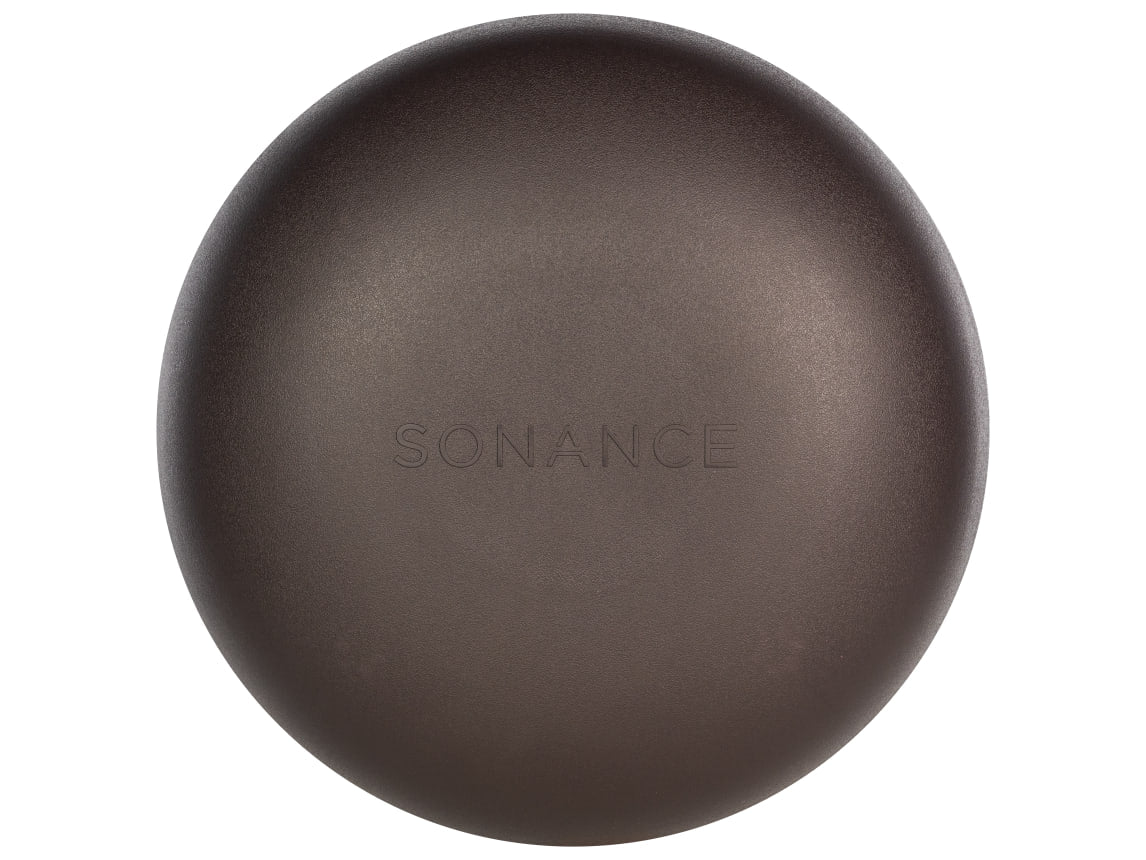

The textured dark brown enclosure is designed to blend into ground cover, garden beds and foliage.
Frequency Range (-10dB) |
38Hz – 25khz |
Frequency Range (-3dB) |
60Hz – 20kHz |
Power Capacity |
20 Watts Continuous Program Power, 60 Watts Continuous Pink Noise |
Nominal Sensitivity |
88 dB |
Nominal Coverage Angle |
360 degrees horizontal, 160 degrees vertical |
Directivity Factor (Q) |
2.2 |
Directivity (DI) |
3.4dB |
Rated Maximum SPL |
107dB @ 1 meter (3.3 feet) average, 113dB peak |
Rated Impedance |
8 ohms nominal, 6 ohms minimum |

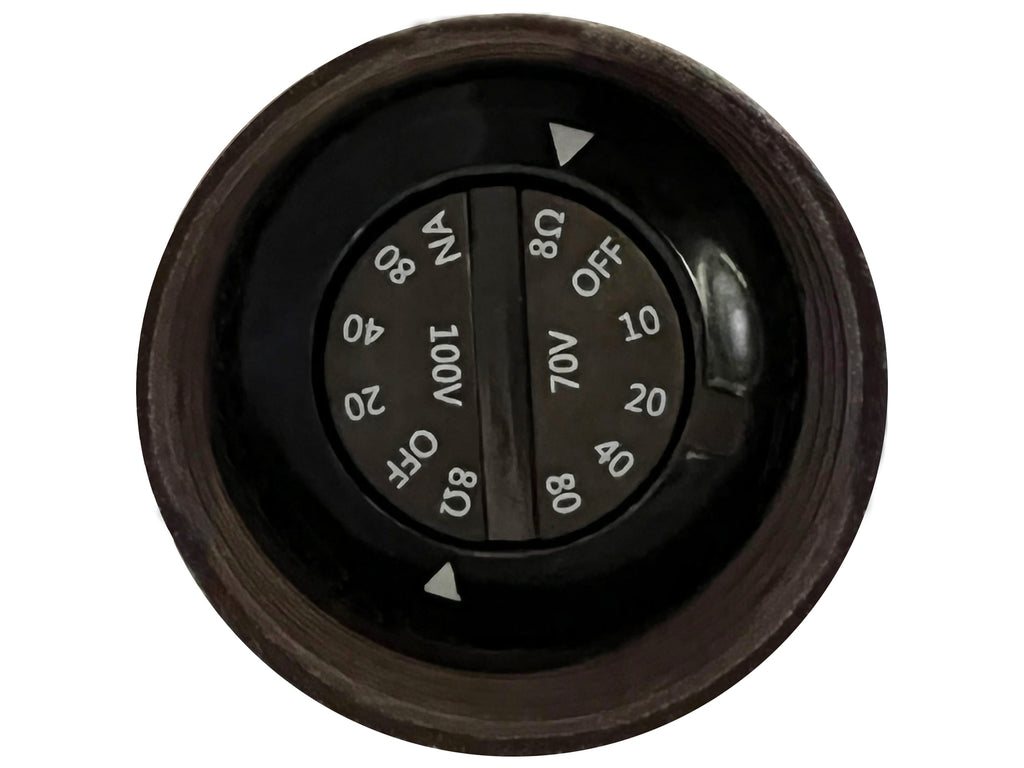

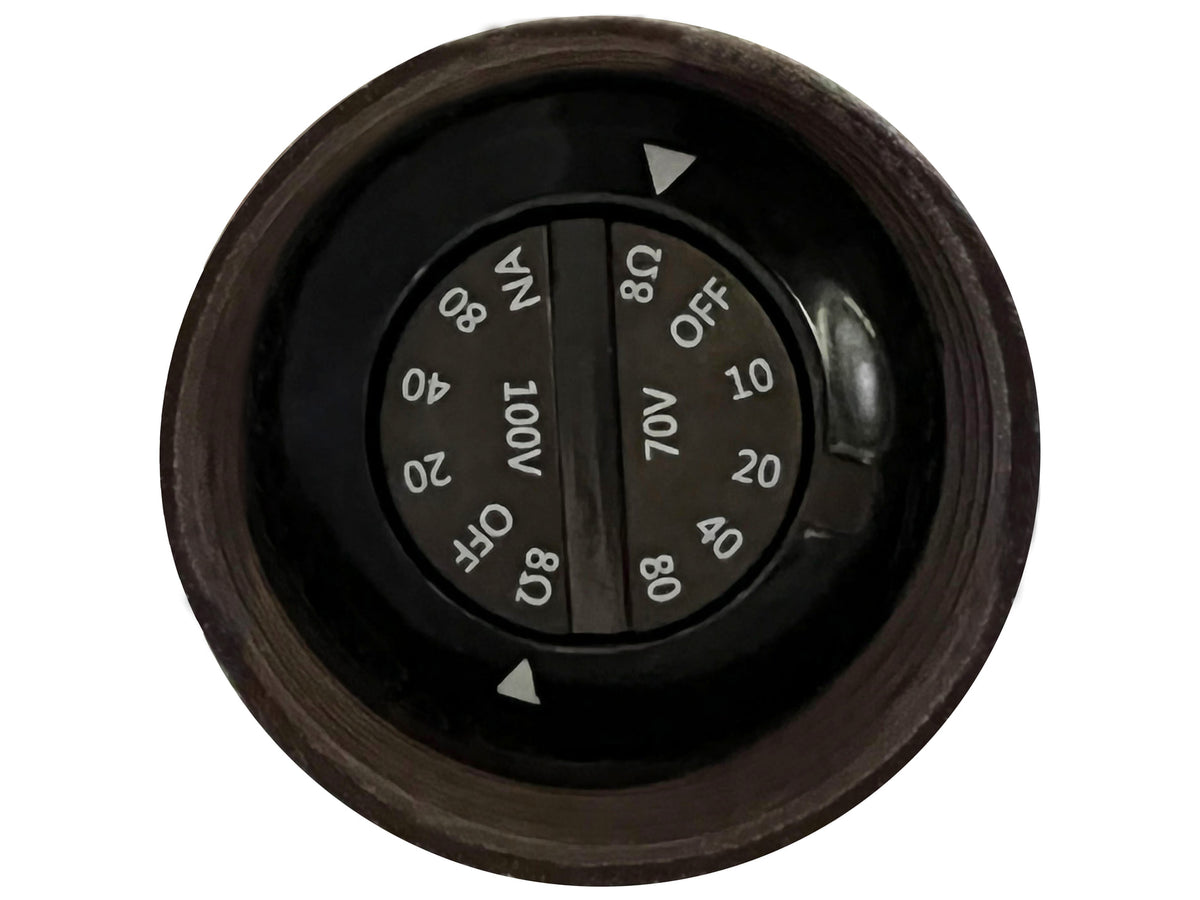

Transformer Taps |
80W, 40W, 20W and (10W @70V) |
Crossover Point |
500Hz |
LF Driver |
6.5" (165mm) Polypropylene Cone, Santoprene Rubber Surround |
Wide Band Driver |
Four 1.25" (32mm) EPDM dome, Ferrofluid cooled
|

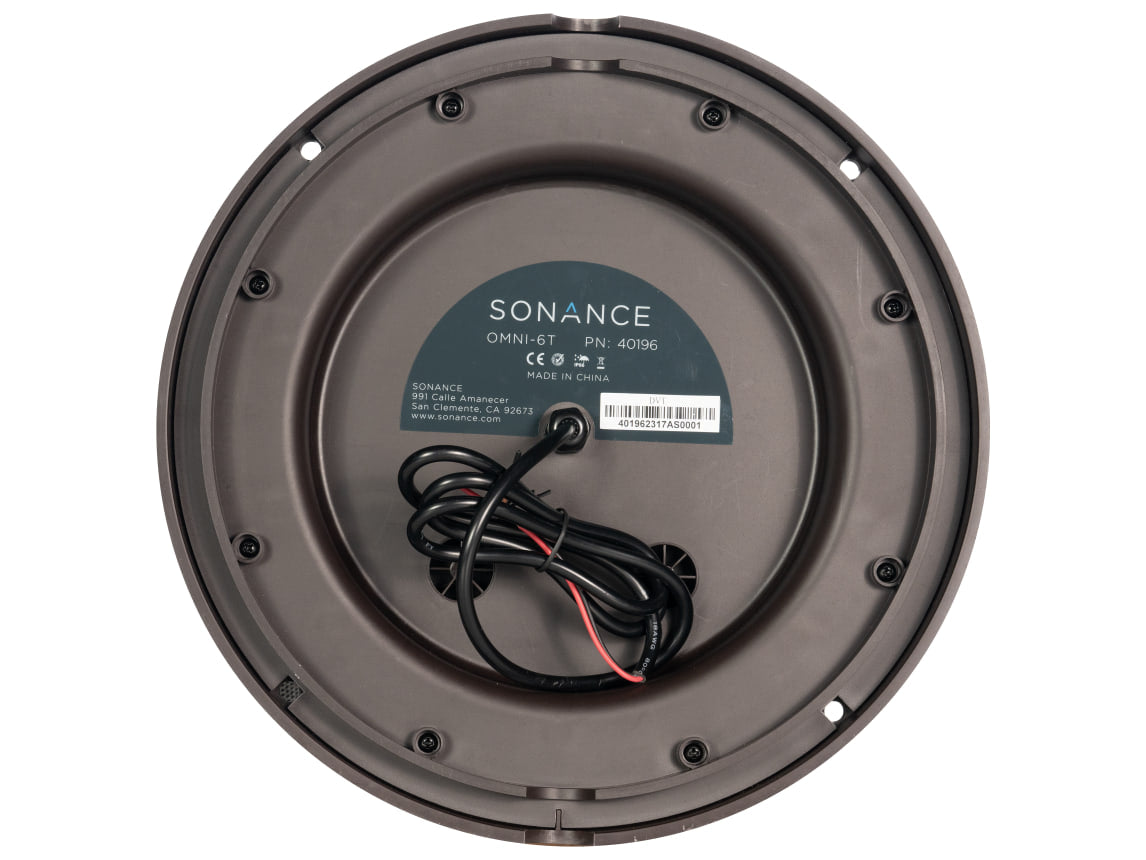

Input Connectors |
Flying Leads |
Environmental |
Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IEC 529, IP-66 waterproof rating |
Included Accessories |
Silicone filled wire nuts |
Overall Dimension HxDia |
14.5”x 12" (368mm x 305mm) |
Net Weight |
14.60 lbs (6.62kg) each |
Top Diameter |
12" (305mm) |
Base Diameter |
11.36" (289mm) |
Height |
14.5" (368mm) |
