SPECIFICATION
Amplifier
Power output: 150 Watts per channel into 8 Ohms
THD (+ noise): <0.010 % typical 20Hz - 20 kHz
Signal to Noise Ratio: >100dB ‘A’ - weighted
Frequency Response: +0, –0.1dB, 10Hz to 20 kHz

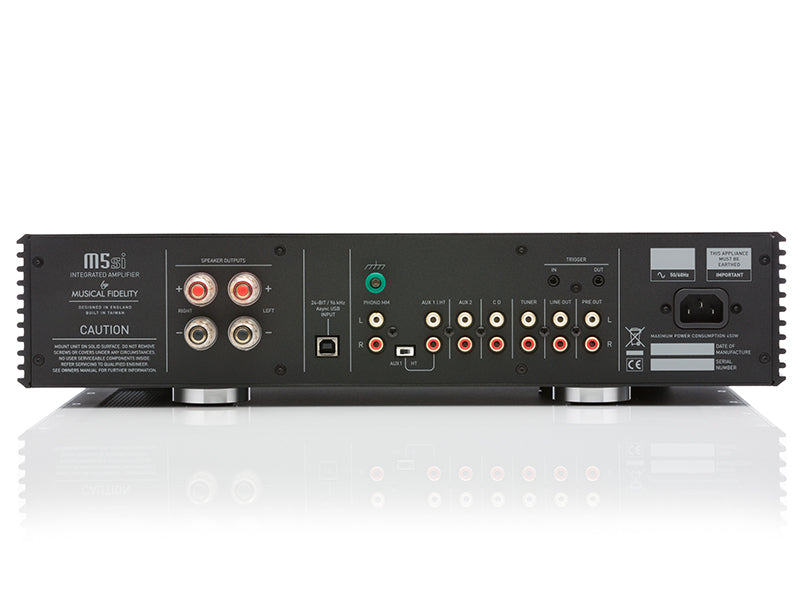

Inputs
4x Line Level RCA
1x USB type ‘B’ connector - asynchronous data
stream at up to 24-bit/96kHz
1 x MM phono input
Trigger in
Phono Input
Sensitivity: 3mV nominal (MM)
Signal / noise ratio: >70dB ‘A’-weighted
Input impedance: 50k Ohms (MM)
Frequency response: RIAA/IEC ±0.5dB 20Hz-20kHz
Outputs
Trigger out
Fixed, line level output
Variable, preamp output
General
Dimensions - WxHxD (mm): 440 x 100 x 405
Weight (unpacked / packed): 14.6 kg/ 18.8 k
