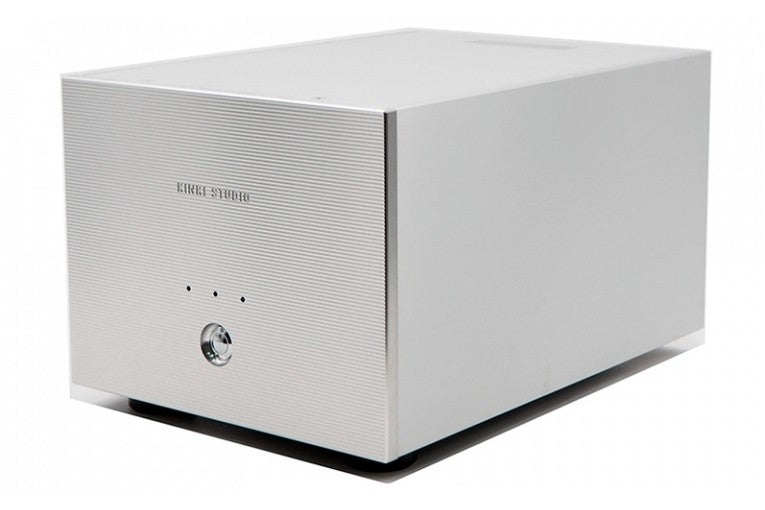

EX-B7 Monophonic power amplifier
Kinki Studio's EX Series is designed to reproduce sound quality with midrange balance and smooth extension in both the high and low extension ends.
The EX-B7 is the statement monoblock power amplifier. Each monoblock is fitted with dual 300VA UK Made Amplimo toroidal transformers, 4 pairs of EXICON Laterals MOSFETs and a huge reservoir power holding capacitors. This is an essential doubling of what the award-winning EX-M1 offered. The EX-M1's good remains, rich in tonal quality, detail, dynamics and high resolution.
OVERVIEW:
Technical specifications
- Frequency Response: 0-2.5MHz (±3dB)
- THDN: ?0.05% (-80db)
- S/N Ratio: >110db(0.01Hz- 1MHz), >130db (A-Weighted)
- Output Power: 250W RMS(2-8 Ohms)
- Max Instantaneous Power: 400w RMS (8 Ohms)
- Max Output Voltage: 84VAC, 20A
- Slew Rate: 200V /us (Rise Time < 300ns)
- AC Power: 110/240VAC, 50/60Hz (Factory configure).
- Power Consumption: 30W Idle, 600W Max Output
- Inputs / Outputs
- Input Sensitivity: 1.45Vrms
- Input Impedance: 51k? (Acceptable Range 10k-52k?)

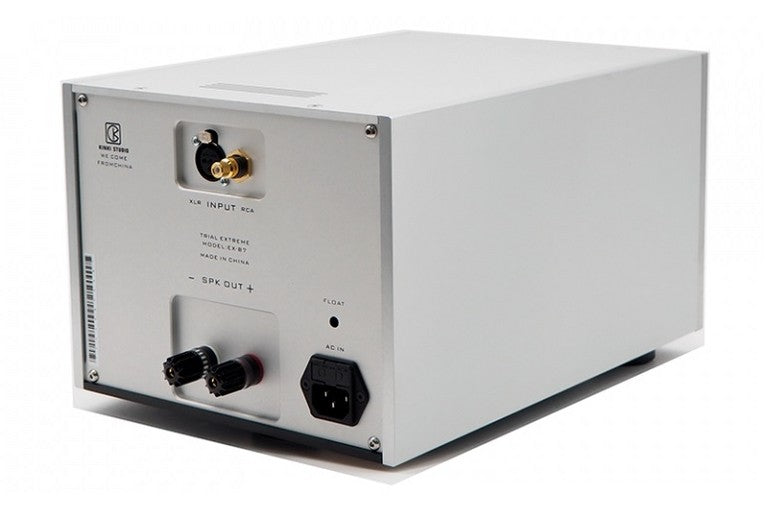

- Input Connectors: RCA x 1, XLR x 1
- Output: Speaker Binding Post 4mm L/R Channel
- Dimension: 330D x 230W x 190H
- Weight: 17KG ea
